Gear Motors

PRODUCT FAMILIES

GEAR MOTORS

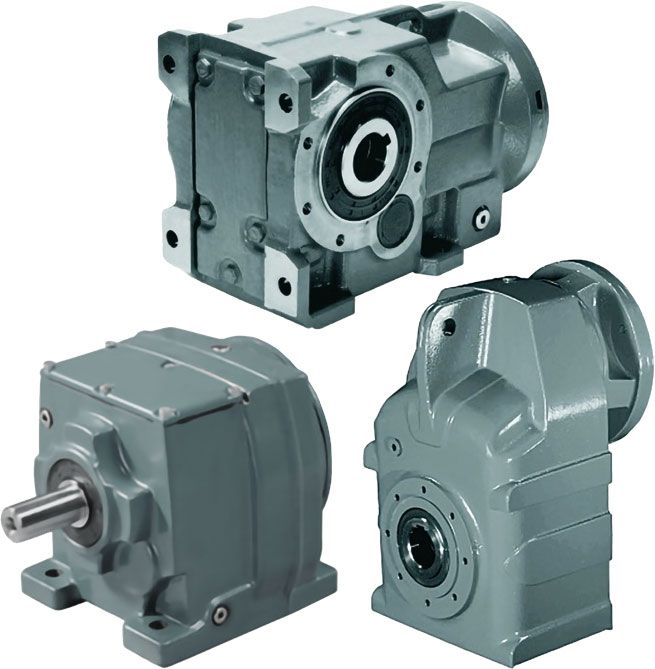

Reuland's Gear Motors are complemented by a complete line of speed reducers for various applications. These speed reducers combined with our quality-built motors or brake motors form a Gear Motor.

Right Angle Single Worm Gear Motors are available as flange or foot mounted with ratings of 0.25-30 HP, gear ratios of 5.1-60: 1, and output torque of up to 10,000 in-lb. Combination Helical-Right Angle Worm Gear Motors are available as flange or foot mounted with ratings of 0.33-10 HP, gear ratios of 7.2-372: 1, and output torque of up to 18,000 in-lb. Helical-Bevel Right Angle Gear Motors are available as flange or foot mounted with ratings of 0.38-150 HP, gear ratios of 10-160: 1, and output torque of up to 350,000 in-lb. Helical Parallel and Concentric Shaft Gear Motors are available as flange or foot mounted with ratings of 0.50-150 HP, gear ratios of 1.5-1800: 1, and output torque of up to 130,000 in-lb. Helical Parallel Shaft "Versa-Drive" Gear Motors

These gear motors are available only as footed mounted units with ratings of 0.25-10 HP, gear ratios of 4-190: 1, and output torque of up to 9075 in-lb.

Electrical Features

Design Type AC Induction; Design B, C, D; Single or Multi-Speed; Variable Speed; Wound Rotor; Permanent Magnet; Synchronous Reluctance
Power Up to 300 HP
Speed Variable Speed
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz; Up to 133 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, wound rotor, copper, or copper alloy rotor construction.
Brake Direct acting magnetic disk; heavy duty brake lining; spline hub; spring-set operation; magnetically released.

Mechanical Features

Frame NEMA frames 56 through 405. Custom frames also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Cast iron Brake housing. Cast iron gearbox. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Non-Ventilated (TENV); Open Drip Proof (ODP).
Bearings Heavy-duty Steel ball
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open;
Balance NEMA Standard.
Insulation Class B, F, H and VPI.
Mounting Foot or Footless; Flange
Accessories Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Crane & Hoist

Heavy Movable Structures

Textile

Machine Tool

Applications

Speed Reduction

High Torque

Cranes

Hoists
