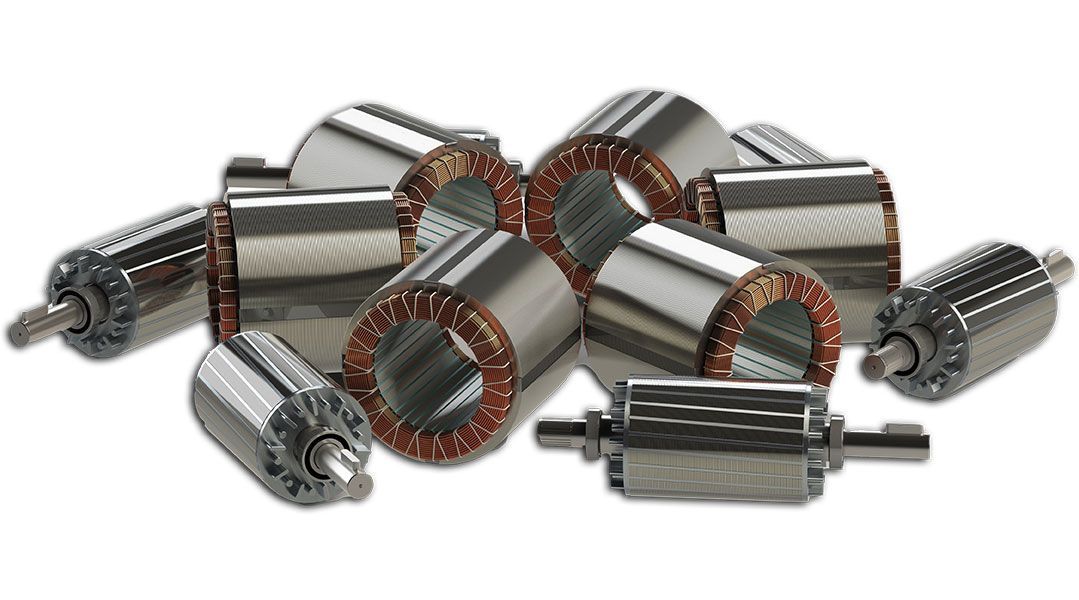

PARTIAL MOTOR - STATORS & ROTOR SETS

Reuland Partial motors are AC induction, squirrel cage stator, and rotor sets with power ranging from fractional to 1100 HP and speeds up to 60,000 rpm. All Reuland Partial Motors are available as stator and rotor sets or as individual components. The wound stator core is available either as a machined core or with a shell housing to match most any existing diameter requirement. The rotor is available with standard or special machined bores. High-speed designs are available up to 2000 hertz. A vast selection of diameters and core lengths are available as standard. Special lengths are available upon request. High-pressure die-cast aluminum rotors include cooling fins and balancing lugs. Fabricated rotors and encapsulated end rings are available for special performance characteristics.



Common applications are motorized spindles, pumps, small hoist motors, drilling and boring machines, routers, arbors, grinders, and any application where the motor must be built into another component.


Electrical Features

Design Type AC Induction; Partial Motor - Stator & Rotor Sets; Variable Speed
Power Up to 1100 HP
Speed Up to 60,000 rpm *Higher speeds available - consult factory
Voltage Up to 600 volts
Phase 3-Phase
Frequency Up to 2000 Hz
Configuration 2, 4, or 6-pole
Stator M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction. Encapsulated rotor design for ultra-high speeds.

Mechanical Features

Frame Reuland partial motor frames 315-0.98 thru 1889-26.19. Other custom frames and special constructions are available upon request.
Construction With or without shell; with or without shaft; Consult factory for stainless steel shell and/or custom design.
Enclosures Liquid Cooled; Air Cooled; Non-Ventilated; cooling provided by the customer.
Insulation Class H; Super Class H insulation with Vacuum Impregnation (VPI).
Accessories Temperature Sensors

Industries Served

Automotive

Machine Tools

Aerospace

Energy Recovery


Applications

High Speed

Spindles

Small Hoists

Arbors

Grinders
