HYDRAULIC PUMP MOTORS

Reuland manufactures a complete line of Hydraulic Pump motors specifically designed to be used with hydraulic pumps. Power ratings range from fractional to 80 HP in both U and T frame designs.

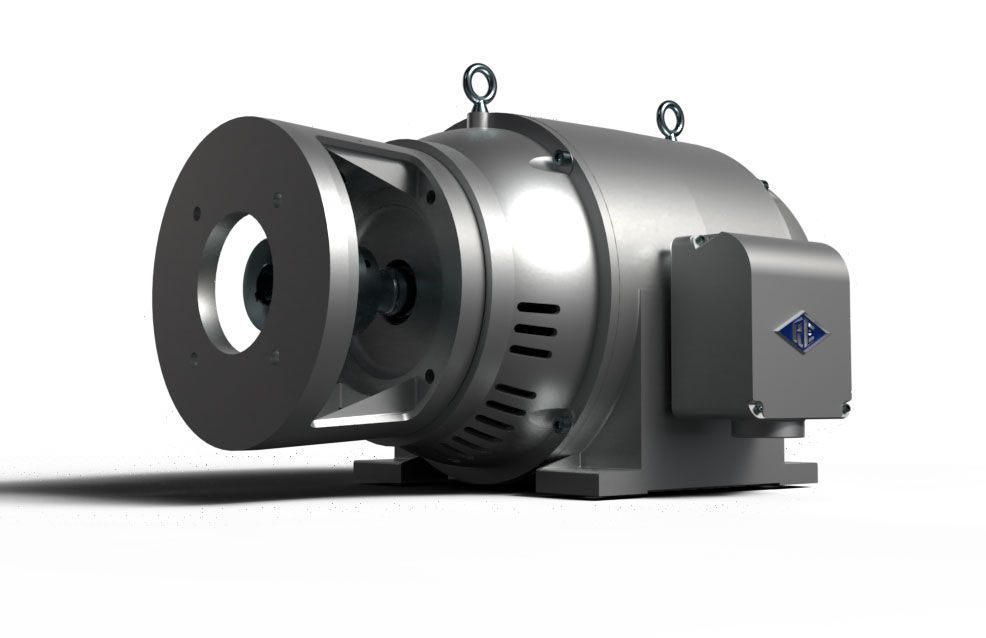

The enclosures for these continuous duty motors are open drip proof or totally enclosed fan cooled. Our Magnaloy design combines Reuland single or variable-speed motors with our pump adapters and couplings to form a hydraulic pump motor. Our spline designs use a special end bell with spline couplings to connect the pump to the motor.

Reuland hydraulic pump motors can be configured to mount a pump on each end of the motor (double-end configuration). For compact designs, Waferthin motors (single-end configuration), in totally enclosed fan cooled or non-ventilated enclosures are utilized.

Reuland's pump motor mounts are designed to fit most Nema "C" face motors from 56C through 445TSC frames. The pump mounts give the customer a variety of SAE 2 bolt or 4 bolt flanges. In addition, our pump mounts are compact and lightweight. Pump mounts can also be furnished in metric or non-SAE dimensions.

ELECTRICAL FEATURES

Design Type AC Induction; Single or Variable Speed
Power Up to 80 HP
Speed 3600, 1800, 1200, 900 rpm; Variable Speed
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, up to 133 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction.

MECHANICAL FEATURES

Frame NEMA frames 56 through 449, Waferthin frames. Custom frames also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Non-Ventilated (TENV); Open Drip Proof (ODP)
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard
Insulation Class B, F, H, and VPI
Mounting Foot or Footless; Conventional C Flange; Special and Custom Flanges.
Accessories Temperature Sensors, Vibration Mounts and Sensors.

Industries Served

Infrastructure

Applications

Hydraulic pumps
