WAFERTHIN MOTORS

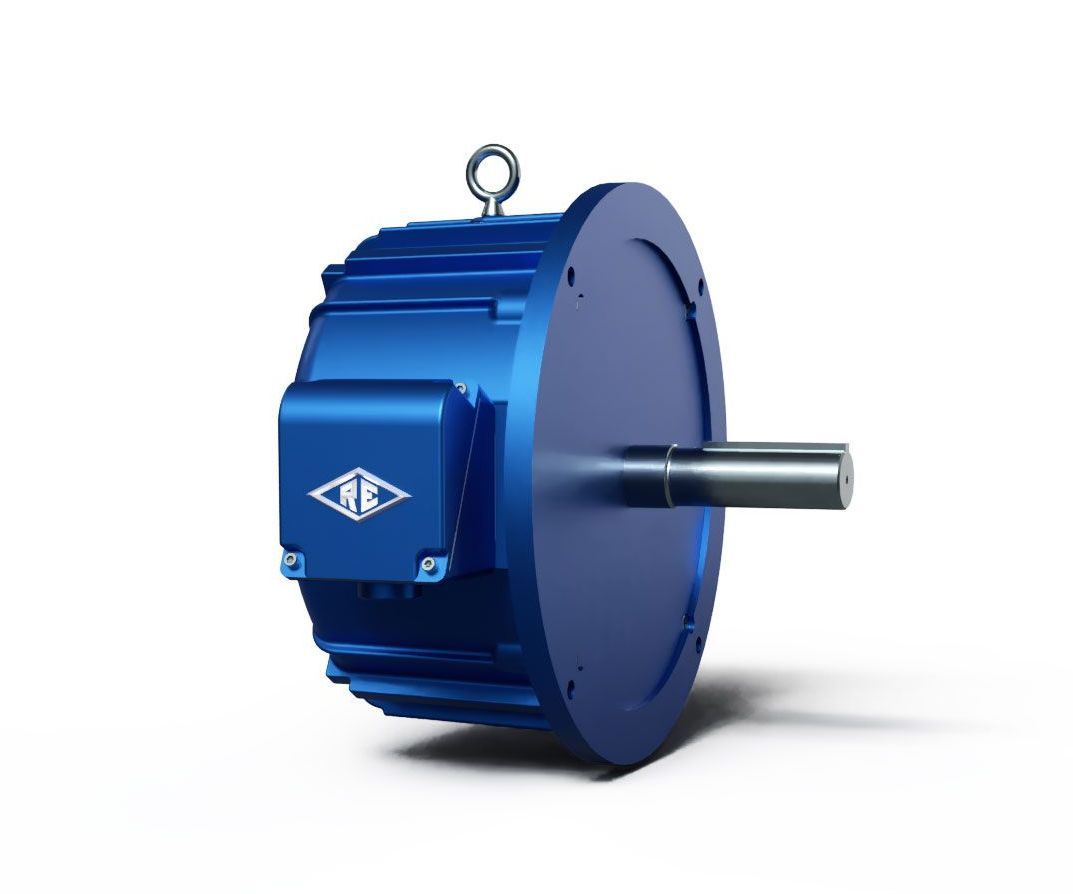

Reuland’s Waferthin motors also known as Pancake motors use powerful designs that put conventional power into half the usual length. A new era of industrialization requires specially designed motors that must meet unusual size limitations. Reuland’s Waferthin motors offer just such a solution; offering universal appeal with extensive reductions in weight and length, fine precision performance, smooth castings, and beautiful enamel finishes; no longer do manufacturers have to "make something do."



Reuland's Waferthin motors have opened up exciting new areas for equipment designers and are today in use throughout a wide cross-section of industry including machine tools, textiles, materials handling, and special machinery - doing the same jobs that motors twice their size had been doing!

Design Type AC Induction Design A, B, C, D; Variable Speed
Power 1/10 – 75 HP
Speed 3600, 1800, 1200, 900, 600, 300 rpm; variable speed
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, up to 133 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction.

Frame Reuland Waferthin frames 800 through 1400LL. Custom frames are also available, consult factory.
Construction Cast aluminum frame and end bells. Consult factory for custom design.
Enclosures Fan-Cooled (Totally Enclosed); Auxiliary Fan Cooled (Totally Enclosed); Non-Ventilated (Totally Enclosed)
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard.
Insulation Class B, F, H and VPI.
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.
