SS-100 Inverter/Vector Duty Motors

PRODUCT FAMILIES

SS-100 INVERTER/VECTOR DUTY MOTORS

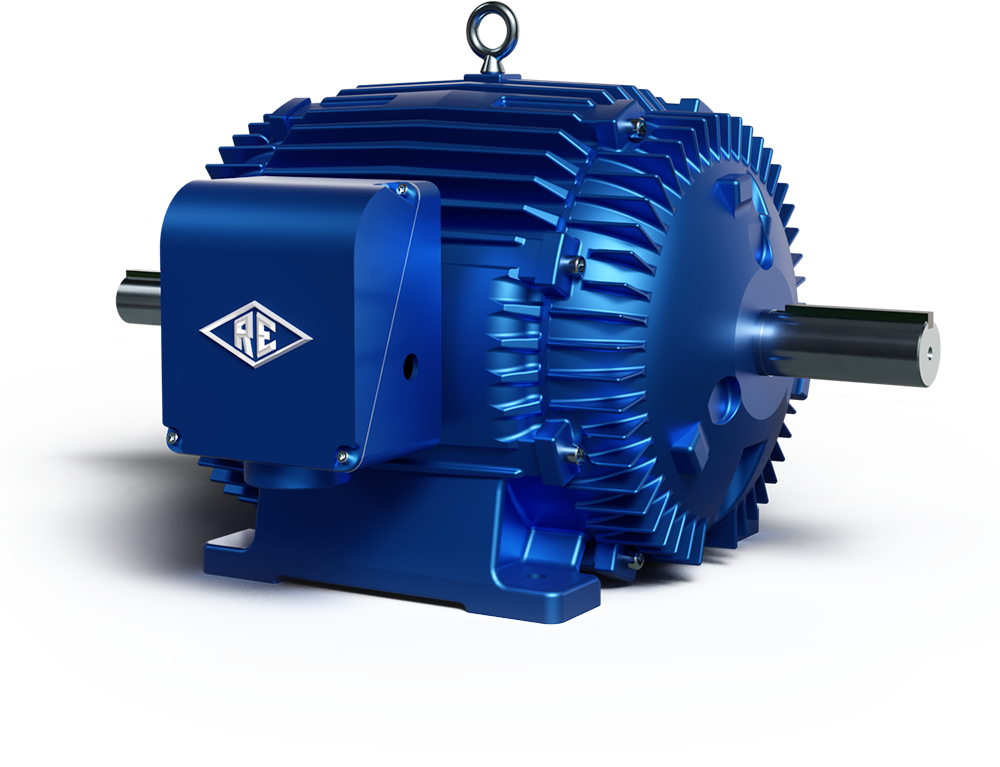

Reuland's variable speed, SS-100 inverter/vector duty motors are designed and optimized for inverter operation only and provide a wide constant torque range available in both open-loop and closed-loop modes. SS-100 style motors are designed and manufactured for the most demanding applications. With closed-loop controls, Reuland's SS-100 motors provide up to 2000:1 constant torque and full torque at zero speed. With open-loop controls, a constant torque range of 1000:1 is also achievable.


Reuland's unique slot designs minimize the heating and noise effects induced by drive switching frequencies (harmonics) and eliminate typical cogging at low-frequency operation. Variable speed designs are also available with wide constant power ranges often required in machine tool spindle applications. Reuland's variable speed, SS-100 inverter/vector duty motors are available in open drip proof, totally enclosed and auxiliary blower cooled enclosures, and as a continuous or intermittent duty.



Typical applications include machine tools, material handling, pumps, fans, and elevators, to name a few.

ELECTRICAL FEATURES

Design Type AC Induction; 1 or 2-Speed; Variable Speed
Power Up to 350 HP
Speed Base Speed of 3600, 1800, 1200, 900, 720 rpm & custom; Variable Speed with wide constant power range up to 2 times base speed; 1000:1 Constant Torque Open Loop; 2000:1 Constant Torque Closed Loop
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, up to 133 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction.

MECHANICAL FEATURES

Frame NEMA frames 56 through 449. Custom frames also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Auxiliary Fan Cooled (A-TEFC); Totally Enclosed Non-Ventilated (TENV); Open Drip Proof (ODP)
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard
Insulation Class B, F, H, and VPI
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Special and Custom Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.
