HIGH SPEED: TOTALLY ENCLOSED AIR COOLED AND NON-VENTILATED MOTORS

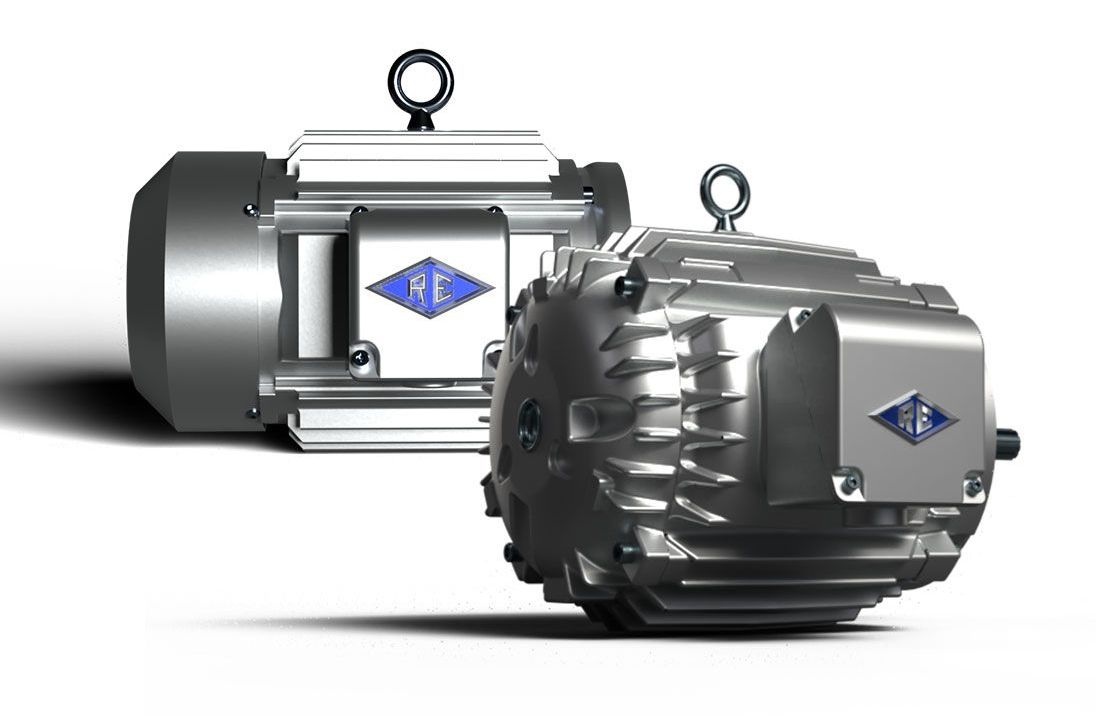

Reuland's Totally Enclosed Fan Cooled motors (TEFC) are typically offered with a shaft-mounted fan for efficient cooling. An auxiliary blower is used in place of a shaft-mounted fan for motors (A-TEFC) operating at very low or very high speeds or to achieve a higher power performance. For applications, where the use of a shaft-mounted fan or an auxiliary blower is not practical, Reuland offers a line of Totally Enclosed Non-Ventilated motors (TENV).


Electrical Features

Design Type AC Induction; Variable Speed
Power 1/10 – 350 HP
Speed Up to 30,000 rpm
Voltage Up to 600 volts
Phase 3-Phase
Frequency Up to 2000 Hz
Volts/Herts Range Per Customer Requirements
Stator M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction. Encapsulated rotor design for ultra-high speeds.

Mechanical Features

Frame Reuland frame 315 through 532 for small motors; NEMA frame 56 through 449 for large motors; IEC frame 90 through 315; square frames and custom frames are also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Fan-Cooled (Totally Enclosed); Auxiliary Fan Cooled (Totally Enclosed); Non-Ventilated (Totally Enclosed); Air-Purged Provisions
Bearings High-Precision, ABEC-7, Steel ball, Ceramic ball or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open, Oil Jet
Balance Precision and/or NEMA Standard.
Insulation Class B, F, H and VPI.
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Automotive

Machine Tools

Aerospace

Infrastructure

Textile

many more


Applications

High Speed

Test Stands and Dynos

Compressor and Pumps

Spindles

Turbine Starters

many more
