Marine And Coast Guard Duty Motors

PRODUCT FAMILIES

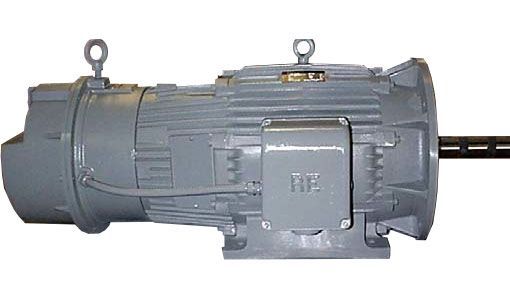

MARINE AND COAST GUARD DUTY MOTORS

Reuland's Marine Duty motors utilize quality components in configurations designed for the hazards of the marine environment, providing sealed construction, corrosion protection, and high-grade insulation systems. Reuland® motors have been performing in these environments for over 75 years and are made in compliance with the specifications of IEEE-45, the American Bureau of Shipping (ABS), the United States Coast Guard (USCG), and IEC 60092.


Any of Reuland's products including motors, brakes, and gearboxes can be successfully adapted for the marine environment by employing our marine duty protection.

Electrical Features

Available Motor Products Single-Speed Motors; Multi–Speed Motors; Wound Rotor Motors; SS-100 Inverter / Vector Duty Motors; High Speed Liquid Cooled Motors; High Speed Air Cooled Motors; AC Synchronous Motors; Partial Motors: Stator/Rotor Sets; NEMA Torque Designs: A,B,C, D (5-8% Slip) and 8-13% Slip
Design Type AC Induction; Single-Speed; Multi-Speed; Wound Rotor; Permanent Magnet; Reluctance
Power Up to 300 HP
Speed 3600, 1800, 1200, 900, 720, 600, 450, 300 rpm; Multi-Speed; Variable Speed
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, up to 2000 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction.

Mechanical Features

Frame NEMA frames 56 through 449. Custom frames also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard
Insulation Class B, F, H, and VPI
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Special and Custom Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Military

Marine & Coast Guard

Crane & Hoist

Applications

Winches

Hydraulic Pumps

Fans

Cranes

Hoist
